Anti Smog Gun
Anti smog gun is a type of high-pressure device that is designed to control air pollution and make the area clear by eliminating harmful gas. This equipment is designed using heavy-duty hydraulic components that have the quality to form spray stream droplets with the help of a high-speed propeller.

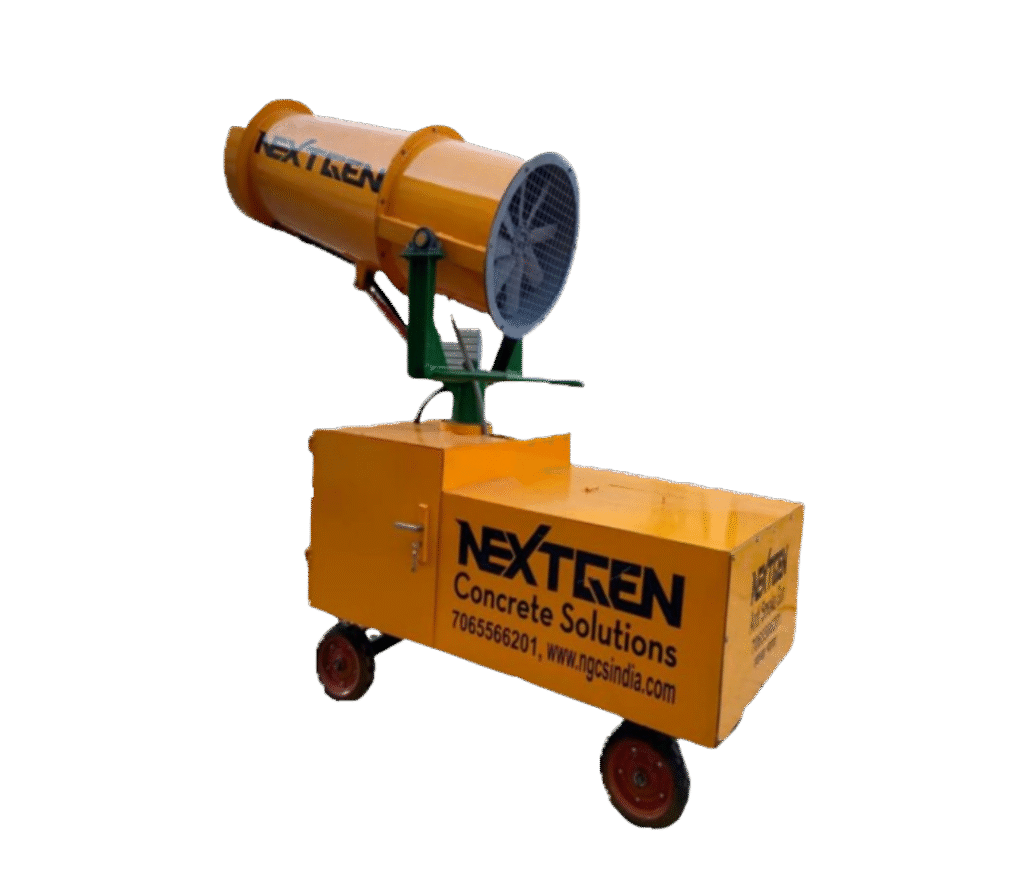

Smog Gun is a canon shaped device attached to water tank built on a movable device that sprays atomized water droplets in the air. Very commonly, this involves using strategically-placed atomizing nozzles to spray a fine mist of water to capture airborne dust particles and bring them to the ground. Air atomization enables tiny particles or water, which increases the number or droplets and reduces the surface tension of the water. This means when the water droplets collide with the dust particles, instead of the dust bouncing off the ‘skin’ of the water, they merge and the increased weight of the dust particle causes it to fall to the ground.
Benefits
► Anti-smog gun is used to spray water after connecting it with water tank mounted on a tower.
► It converts the water into a fine spray with droplets size of 20-10 microns by passing it at high pressure through propellers.
► The idea behind this invention is to reduce air pollution by binding dust and other particulate matter and carrying them down to the ground level along with water.
► This is been designed for small to medium properties like schools, hospitals, hotels, restraunt, banquets, farm houses, gardens etc.
► It basically works as rain to bring down the suspended particles present in the air. This device could be mounted any where and spray mist to settle all suspended particles.
► Anti smog gun for small areas can spray mist in 1200 sqmt area with the capacity of 30 litres per hr to bring down the polluted particles from the atmosphere.
Technical Specification Of Anti Smog Gun 30-50 MTR Range (Model – NGASG)
| Usage/Application | Control Air Pollution | Control Air Pollution |
|---|---|---|
| Theoretical Spraying Distance | 25-30 Meter | 40-50 Meter |
| Type | Trolley Mounted With 4 Nos Wheels | Trolley Mounted With 4 Nos Wheels |
| Horizontal Rotation Angle | 350 Degree | 350 Degree |
| Droplet Size | 50-150 Microns | 50-150 Microns |
| Tilting Angle | 10-50 Degree | 10-50 Degree |
| Fan Motor | 5 HP Crompton Motor 3 Phase | 10 HP Crompton Motor 3 Phase |
| Voltage | 415 V/50Hz/6.3 AMP | 415 V/50Hz/6.3 AMP |
| Fan Blade | 6 Nos. | 6 Nos. |
| Water Tank | 500 Liter/1000 Liter | 500 Liter/1000 Liter |
| Nozzle | 18 Nos Stainless Steel 304 | 20 Nos Stainless Steel 304 |
| Volume Flow | 25-30 Liter/Minute | 25-30 Liter/Minute |
| Blower RPM | 2820 | 2820 |
| Hose | High Pressure Rubber Hose Pipe | High Pressure Rubber Hose Pipe |
| Control Panel | Operate Fan & Pump | Operate Fan & Pump |
| Water Pump Pressure | 1.5-3 AMP | 1.5-3 AMP |
| Water Pump | 1.5 HP CRI/ LUBI 415 V/50 Hz/1440 RPM/6.3 AMP | 3 HP CRI/ LUBI 415 V/50 Hz/1440 RPM/6.3 AMP |
| Automatic Grade | Semi-Automatic | Semi-Automatic |
